Disable vSAN Health Alarm

10 minute read

Introduction

I am currently rebuilding my lab as it was time to refresh it. I run it all nested on VMware Workstation 15 as I have a powerful enough PC to run a nested three host cluster easily. Deploying the ESXi and VCSA OVAs is very easy in v15 so a single PC has more WAF than a bunch of server class machines.

As part of the lab I run nested vSAN which obviously is not on the vSAN HCL so when the lab was built vSAN was showing a Health warning SCSI controller is VMware Certified which left an Alarm on the cluster which tweaked my OCD.

vSAN Health Warning

As it’s a nested lab it would never pass this health check so I wanted to disable it. Using the Ruby vSphere Console (RVC) it is possible to disable any of the health checks. In this blog I will go through the procedure for cleaning up this warning in my cluster.

This is all based on vSAN version 6.6.1. In my vCenter the Datacenter is called Contoso and the Cluster Corp.

Ruby vSphere Console

The RVC is a command line tool in the VCSA that is another CLI tool for managing vSphere. RVC is one of the main tools for managing and troubleshooting a vSAN environment.

There are a few guides on using the RVC but one I have used is a series of posts on the vSphere blog written by Joe Cook:

It’s a few years old but a useful starting point for the RVC. Joe along with Cormac Hogan also produced the VMware Ruby vSphere Console Command Reference for Virtual SAN. Again it’s a few years old but a useful resource.

To log into the RVC ssh into the VCSA and type rvc. You will be prompted for credentials which relies on the PSC SSO for validation. In this case I am going to use the administrator@vsphere.local username and as I am connected to the VCSA I want to work on I specify the localhost:

login as: root
Pre-authentication banner message from server:
|
| VMware vCenter Server Appliance 6.5.0.20000
|
| Type: vCenter Server with an embedded Platform Services Controller
|
End of banner message from server
Keyboard-interactive authentication prompts from server:
| Password:
End of keyboard-interactive prompts from server
Last login: Sat Apr 13 21:09:53 2019 from 10.10.1.11
Connected to service

    * List APIs: "help api list"
    * List Plugins: "help pi list"
    * Launch BASH: "shell"

Command> srvc
Install the "ffi" gem for better tab completion.
Host to connect to (user@host): administrator@vsphere.local@localhost
password:
0 /
1 localhost/
>

We are now in the RVC.

RVC Navigation

In RVC vSphere and vSAN are navigated like a file system using ls and cd commands. Think of this like PowerShell. In PowerShell you can navigate the Registry like a file system. In RVC vSphere is shown in the vCenter hierarchy:

> ls
0 /
1 localhost/
> cd localhost/
/localhost> ls
0 Contoso (datacenter)
/localhost> cd Contoso
/localhost/Contoso> cd /
> ls
0 /
1 localhost/
> cd localhost
/localhost> ls
0 Contoso (datacenter)
/localhost> cd Contoso
/localhost/Contoso> ls
0 storage/
1 computers [host]/
2 networks [network]/
3 datastores [datastore]/
4 vms [vm]/

You can then browse down into things like the Cluster, vDSs, vSAN, etc.

In this example I browse down to a host and into the vSAN datastore on that host using the usual cd and ls commands:

> ls
0 /
1 localhost/
> cd localhost
/localhost> ls
0 Contoso (datacenter)
/localhost> cd Contoso
/localhost/Contoso> ls
0 storage/
1 computers [host]/
2 networks [network]/
3 datastores [datastore]/
4 vms [vm]/
/localhost/Contoso> cd computers
/localhost/Contoso/computers> ls
0 Corp (cluster): cpu 10 GHz, memory 7 GB
/localhost/Contoso/computers> cd Corp
/localhost/Contoso/computers/Corp> ls
0 hosts/
1 resourcePool [Resources]: cpu 10.60/10.60/normal, mem 7.07/7.07/normal
/localhost/Contoso/computers/Corp> cd hosts
/localhost/Contoso/computers/Corp/hosts> ls
0 esxi1.corp.contoso.com (host): cpu 2*1*3.50 GHz, memory 10.00 GB
1 esxi2.corp.contoso.com (host): cpu 2*1*3.50 GHz, memory 10.00 GB
2 esxi3.corp.contoso.com (host): cpu 2*1*3.50 GHz, memory 10.00 GB
/localhost/Contoso/computers/Corp/hosts> cd esxi1.corp.contoso.com
/localhost/Contoso/computers/Corp/hosts/esxi1.corp.contoso.com> ls
0 vms/
1 datastores/
2 networks/
/localhost/Contoso/computers/Corp/hosts/esxi1.corp.contoso.com> cd datastores
/localhost/Contoso/computers/Corp/hosts/esxi1.corp.contoso.com/datastores> ls
0 vsanDatastore: 96.61GB 2.0%
/localhost/Contoso/computers/Corp/hosts/esxi1.corp.contoso.com/datastores> cd vsanDatastore
/localhost/Contoso/computers/Corp/hosts/esxi1.corp.contoso.com/datastores/vsanDatastore> ls
0 files
1 vms/
2 hosts/
3 capabilitysets/

To speed up navigation when you type ls there is a number beside each entry. You can simply type cd and the number. For example:

/localhost/Contoso> ls
0 storage/
1 computers [host]/
2 networks [network]/
3 datastores [datastore]/
4 vms [vm]/
/localhost/Contoso> cd 1
/localhost/Contoso/computers>

Disabling the vSAN Health Alarm

vSAN Health Checks are performed at the Cluster level which in RVC is at /localhost/Contoso/computers/Corp. We can check the Cluster vSAN health by running the command vsan.health.health_summary with the cluster appended:

> vsan.health.health_summary /localhost/Contoso/computers/Corp
Overall health: red (vSAN HCL warning)
+-----------------------------------------------------------------+---------+
| Health check                                                    | Result  |
+-----------------------------------------------------------------+---------+
| Online health (Last check: 30 minute(s) ago)                    | Passed  |
|   Customer experience improvement program (CEIP)                | Passed  |
|   Online health connectivity                                    | Passed  |
|   Physical network adapter link speed consistency               | Passed  |
|   Disks usage on storage controller                             | Passed  |
|   vSAN Critical Alert - Patch available for critical vSAN issue | Passed  |
|   vSAN max component size                                       | Passed  |
|   vCenter Server up to date                                     | Passed  |
|   Thick-provisioned VMs on vSAN                                 | Passed  |
+-----------------------------------------------------------------+---------+
| Hardware compatibility                                          | Warning |
|   vSAN HCL DB up-to-date                                        | Passed  |
|   vSAN HCL DB Auto Update                                       | Passed  |
|   SCSI controller is VMware certified                           | Warning |
|   Controller is VMware certified for ESXi release               | Passed  |
|   Controller driver is VMware certified                         | Passed  |
|   Controller firmware is VMware certified                       | Passed  |
|   Controller disk group mode is VMware certified                | Passed  |
+-----------------------------------------------------------------+---------+
| Network                                                         | Passed  |
|   Hosts disconnected from VC                                    | Passed  |
|   Hosts with connectivity issues                                | Passed  |
|   vSAN cluster partition                                        | Passed  |
|   All hosts have a vSAN vmknic configured                       | Passed  |
|   All hosts have matching subnets                               | Passed  |
|   vSAN: Basic (unicast) connectivity check                      | Passed  |
|   vSAN: MTU check (ping with large packet size)                 | Passed  |
|   vMotion: Basic (unicast) connectivity check                   | Passed  |
|   vMotion: MTU check (ping with large packet size)              | Passed  |
|   Network latency check                                         | Passed  |
+-----------------------------------------------------------------+---------+
| Physical disk                                                   | Passed  |
|   Operation health                                              | Passed  |
|   Disk capacity                                                 | Passed  |
|   Congestion                                                    | Passed  |
|   Component limit health                                        | Passed  |
|   Component metadata health                                     | Passed  |
|   Memory pools (heaps)                                          | Passed  |
|   Memory pools (slabs)                                          | Passed  |
+-----------------------------------------------------------------+---------+
| Data                                                            | Passed  |
|   vSAN object health                                            | Passed  |
+-----------------------------------------------------------------+---------+
| Cluster                                                         | Passed  |
|   ESXi vSAN Health service installation                         | Passed  |
|   vSAN Health Service up-to-date                                | Passed  |
|   Advanced vSAN configuration in sync                           | Passed  |
|   vSAN CLOMD liveness                                           | Passed  |
|   vSAN Disk Balance                                             | Passed  |
|   Resync operations throttling                                  | Passed  |
|   vCenter state is authoritative                                | Passed  |
|   vSAN cluster configuration consistency                        | Passed  |
|   Time is synchronized across hosts and VC                      | Passed  |
|   vSphere cluster members match vSAN cluster members            | Passed  |
|   Software version compatibility                                | Passed  |
|   Disk format version                                           | Passed  |
+-----------------------------------------------------------------+---------+
| Limits                                                          | Passed  |
|   Current cluster situation                                     | Passed  |
|   After 1 additional host failure                               | Passed  |
|   Host component limit                                          | Passed  |
+-----------------------------------------------------------------+---------+
| Performance service                                             | Passed  |
|   Stats DB object                                               | Passed  |
|   Stats master election                                         | Passed  |
|   Performance data collection                                   | Passed  |
|   All hosts contributing stats                                  | Passed  |
|   Stats DB object conflicts                                     | Passed  |
+-----------------------------------------------------------------+---------+
| vSAN Build Recommendation                                       | Passed  |
|   vSAN Build Recommendation Engine Health                       | Passed  |
|   vSAN build recommendation                                     | Passed  |
+-----------------------------------------------------------------+---------+

Details about any failed test below ...
Hardware compatibility - SCSI controller is VMware certified: yellow
  +------------------------+--------+------------------------------------+---------------------+----------------------+
  | Host                   | Device | Current controller                 | PCI ID              | Controller certified |
  +------------------------+--------+------------------------------------+---------------------+----------------------+
  | esxi3.corp.contoso.com | vmhba0 | VMware Inc. PVSCSI SCSI Controller | 15ad,07c0,15ad,07c0 | Warning              |
  | esxi1.corp.contoso.com | vmhba0 | VMware Inc. PVSCSI SCSI Controller | 15ad,07c0,15ad,07c0 | Warning              |
  | esxi2.corp.contoso.com | vmhba0 | VMware Inc. PVSCSI SCSI Controller | 15ad,07c0,15ad,07c0 | Warning              |
  +------------------------+--------+------------------------------------+---------------------+----------------------+

[[0.047431826, "initial connect"],
 [3.244764935, "cluster-health"],
 [0.014735734, "table-render"]]

You can see the warning under the Hardware Compatibility section.

Each health check item has a particular ID associated with it which is then used with the vsan.health.silent_check_configure command to disable it.

First to get the ID of the check to disable use the command vsan.health.silent_health_check_status:

> vsan.health.silent_health_check_status /localhost/Contoso/computers/Corp
Silent Status of Cluster Corp:
+---------------------------------------------------------------------------------------------+-------------------------------------+---------------+
| Health Check                                                                                | Health Check Id                     | Silent Status |
+---------------------------------------------------------------------------------------------+-------------------------------------+---------------+
| Cloud Health                                                                                |                                     |               |
|   Advanced vSAN configuration supported                                                     | unsupportedadvparameters            | Normal        |
|   Controller utility is installed on host                                                   | vendortoolpresence                  | Normal        |
|   Controller with pass-through and RAID disks                                               | mixedmode                           | Normal        |
|   Coredump partition size check                                                             | coredumpartitionsize                | Normal        |
|   Customer experience improvement program (CEIP)                                            | vsancloudhealthceipexception        | Normal        |
|   Disks usage on storage controller                                                         | diskusage                           | Normal        |
|   Dual encryption applied to VMs on vSAN                                                    | dualencryption                      | Normal        |
|   Network adapter is VMware certified                                                       | pnichcl                             | Normal        |
|   Online health connectivity                                                                | vsancloudhealthconnectionexception  | Normal        |
|   Patch available for critical vSAN issue for All-Flash clusters with deduplication enabled | patchalert                          | Normal        |
|   Physical network adapter link speed consistency                                           | pnicconsistent                      | Normal        |
|   RAID controller configuration                                                             | controllercacheconfig               | Normal        |
|   Thick-provisioned VMs on vSAN                                                             | thickprovision                      | Normal        |
|   vCenter Server up to date                                                                 | vcuptodate                          | Normal        |
|   vSAN Critical Alert - Patch available for critical vSAN issue                             | lilypatchalert                      | Normal        |
|   vSAN Critical Alert - vSAN Advanced Configuration Check                                   | lilyadvparametercheck               | Normal        |
|   vSAN and VMFS datastores on a Dell H730 controller with the lsi_mr3 driver                | mixedmodeh730                       | Normal        |
|   vSAN configuration for LSI-3108 based controller                                          | h730                                | Normal        |
|   vSAN max component size                                                                   | smalldiskstest                      | Normal        |
+---------------------------------------------------------------------------------------------+-------------------------------------+---------------+
| Cluster                                                                                     |                                     |               |
|   Advanced vSAN configuration in sync                                                       | advcfgsync                          | Normal        |
|   Deduplication and compression configuration consistency                                   | physdiskdedupconfig                 | Normal        |
|   Deduplication and compression usage health                                                | physdiskdedupusage                  | Normal        |
|   Disk format version                                                                       | upgradelowerhosts                   | Normal        |
|   ESXi vSAN Health service installation                                                     | healtheaminstall                    | Normal        |
|   Host Maintenance Mode                                                                     | mmdecominsync                       | Normal        |
|   Resync operations throttling                                                              | resynclimit                         | Normal        |
|   Software version compatibility                                                            | upgradesoftware                     | Normal        |
|   Time is synchronized across hosts and VC                                                  | timedrift                           | Normal        |
|   vCenter state is authoritative                                                            | vcauthoritative                     | Normal        |
|   vSAN CLOMD liveness                                                                       | clomdliveness                       | Normal        |
|   vSAN Disk Balance                                                                         | diskbalance                         | Normal        |
|   vSAN Health Service up-to-date                                                            | healthversion                       | Normal        |
|   vSAN cluster configuration consistency                                                    | consistentconfig                    | Normal        |
|   vSphere cluster members match vSAN cluster members                                        | clustermembership                   | Normal        |
+---------------------------------------------------------------------------------------------+-------------------------------------+---------------+
| Data                                                                                        |                                     |               |
|   vSAN VM health                                                                            | vmhealth                            | Normal        |
|   vSAN object health                                                                        | objecthealth                        | Normal        |
+---------------------------------------------------------------------------------------------+-------------------------------------+---------------+
| Encryption                                                                                  |                                     |               |
|   CPU AES-NI is enabled on hosts                                                            | hostcpuaesni                        | Normal        |
|   vCenter and all hosts are connected to Key Management Servers                             | kmsconnection                       | Normal        |
+---------------------------------------------------------------------------------------------+-------------------------------------+---------------+
| Hardware compatibility                                                                      |                                     |               |
|   Controller disk group mode is VMware certified                                            | controllerdiskmode                  | Normal        |
|   Controller driver is VMware certified                                                     | controllerdriver                    | Normal        |
|   Controller firmware is VMware certified                                                   | controllerfirmware                  | Normal        |
|   Controller is VMware certified for ESXi release                                           | controllerreleasesupport            | Normal        |
|   Host issues retrieving hardware info                                                      | hclhostbadstate                     | Normal        |
|   SCSI controller is VMware certified                                                       | controlleronhcl                     | Normal        |
|   vSAN HCL DB Auto Update                                                                   | autohclupdate                       | Normal        |
|   vSAN HCL DB up-to-date                                                                    | hcldbuptodate                       | Normal        |
+---------------------------------------------------------------------------------------------+-------------------------------------+---------------+
| Limits                                                                                      |                                     |               |
|   After 1 additional host failure                                                           | limit1hf                            | Normal        |
|   Current cluster situation                                                                 | limit0hf                            | Normal        |
|   Host component limit                                                                      | nodecomponentlimit                  | Normal        |
+---------------------------------------------------------------------------------------------+-------------------------------------+---------------+
| Network                                                                                     |                                     |               |
|   Active multicast connectivity check                                                       | multicastdeepdive                   | Normal        |
|   All hosts have a vSAN vmknic configured                                                   | vsanvmknic                          | Normal        |
|   All hosts have matching multicast settings                                                | multicastsettings                   | Normal        |
|   All hosts have matching subnets                                                           | matchingsubnet                      | Normal        |
|   Hosts disconnected from VC                                                                | hostdisconnected                    | Normal        |
|   Hosts with connectivity issues                                                            | hostconnectivity                    | Normal        |
|   Multicast assessment based on other checks                                                | multicastsuspected                  | Normal        |
|   Network latency check                                                                     | hostlatencycheck                    | Normal        |
|   vMotion: Basic (unicast) connectivity check                                               | vmotionpingsmall                    | Normal        |
|   vMotion: MTU check (ping with large packet size)                                          | vmotionpinglarge                    | Normal        |
|   vSAN cluster partition                                                                    | clusterpartition                    | Normal        |
|   vSAN: Basic (unicast) connectivity check                                                  | smallping                           | Normal        |
|   vSAN: MTU check (ping with large packet size)                                             | largeping                           | Normal        |
+---------------------------------------------------------------------------------------------+-------------------------------------+---------------+
| Performance service                                                                         |                                     |               |
|   All hosts contributing stats                                                              | hostsmissing                        | Normal        |
|   Performance data collection                                                               | collection                          | Normal        |
|   Performance service status                                                                | perfsvcstatus                       | Normal        |
|   Stats DB object                                                                           | statsdb                             | Normal        |
|   Stats DB object conflicts                                                                 | renameddirs                         | Normal        |
|   Stats master election                                                                     | masterexist                         | Normal        |
|   Verbose mode                                                                              | verbosemode                         | Normal        |
+---------------------------------------------------------------------------------------------+-------------------------------------+---------------+
| Physical disk                                                                               |                                     |               |
|   Component limit health                                                                    | physdiskcomplimithealth             | Normal        |
|   Component metadata health                                                                 | componentmetadata                   | Normal        |
|   Congestion                                                                                | physdiskcongestion                  | Normal        |
|   Disk capacity                                                                             | physdiskcapacity                    | Normal        |
|   Memory pools (heaps)                                                                      | lsomheap                            | Normal        |
|   Memory pools (slabs)                                                                      | lsomslab                            | Normal        |
|   Operation health                                                                          | physdiskoverall                     | Normal        |
|   Physical disk health retrieval issues                                                     | physdiskhostissues                  | Normal        |
+---------------------------------------------------------------------------------------------+-------------------------------------+---------------+
| Stretched cluster                                                                           |                                     |               |
|   Invalid preferred fault domain on witness host                                            | witnesspreferredfaultdomaininvalid  | Normal        |
|   Invalid unicast agent                                                                     | hostwithinvalidunicastagent         | Normal        |
|   No disk claimed on witness host                                                           | witnesswithnodiskmapping            | Normal        |
|   Preferred fault domain unset                                                              | witnesspreferredfaultdomainnotexist | Normal        |
|   Site latency health                                                                       | siteconnectivity                    | Normal        |
|   Unexpected number of fault domains                                                        | clusterwithouttwodatafaultdomains   | Normal        |
|   Unicast agent configuration inconsistent                                                  | clusterwithmultipleunicastagents    | Normal        |
|   Unicast agent not configured                                                              | hostunicastagentunset               | Normal        |
|   Unsupported host version                                                                  | hostwithnostretchedclustersupport   | Normal        |
|   Witness host fault domain misconfigured                                                   | witnessfaultdomaininvalid           | Normal        |
|   Witness host not found                                                                    | clusterwithoutonewitnesshost        | Normal        |
|   Witness host within vCenter cluster                                                       | witnessinsidevccluster              | Normal        |
+---------------------------------------------------------------------------------------------+-------------------------------------+---------------+
| vSAN Build Recommendation                                                                   |                                     |               |
|   vSAN Build Recommendation Engine Health                                                   | vumconfig                           | Normal        |
|   vSAN build recommendation                                                                 | vumrecommendation                   | Normal        |
+---------------------------------------------------------------------------------------------+-------------------------------------+---------------+
| vSAN iSCSI target service                                                                   |                                     |               |
|   Home object                                                                               | iscsihomeobjectstatustest           | Normal        |
|   Network configuration                                                                     | iscsiservicenetworktest             | Normal        |
|   Service runtime status                                                                    | iscsiservicerunningtest             | Normal        |
+---------------------------------------------------------------------------------------------+-------------------------------------+---------------+

The one we want to disable is controlleronhcl. We can then use the vsan.health.silent_health_check_configure command with the cluster /localhost/Contoso/computers/Corp and the switch --add-checks 'controlleronhcl':

> vsan.health.silent_health_check_configure /localhost/Contoso/computers/Corp --add-checks 'controlleronhcl'
Successfully add check "SCSI controller is VMware certified" to silent health check list for Corp

If we then run a Health check we can see that the HCL check is skipped:

> vsan.health.health_summary /localhost/Contoso/computers/Corp
Overall health: green (OK)
+-----------------------------------------+---------+
| Health check                            | Result  |
+-----------------------------------------+---------+
|   SCSI controller is VMware certified   | skipped |
+-----------------------------------------+---------+

You can see the overall health is now green, and in the GUI:

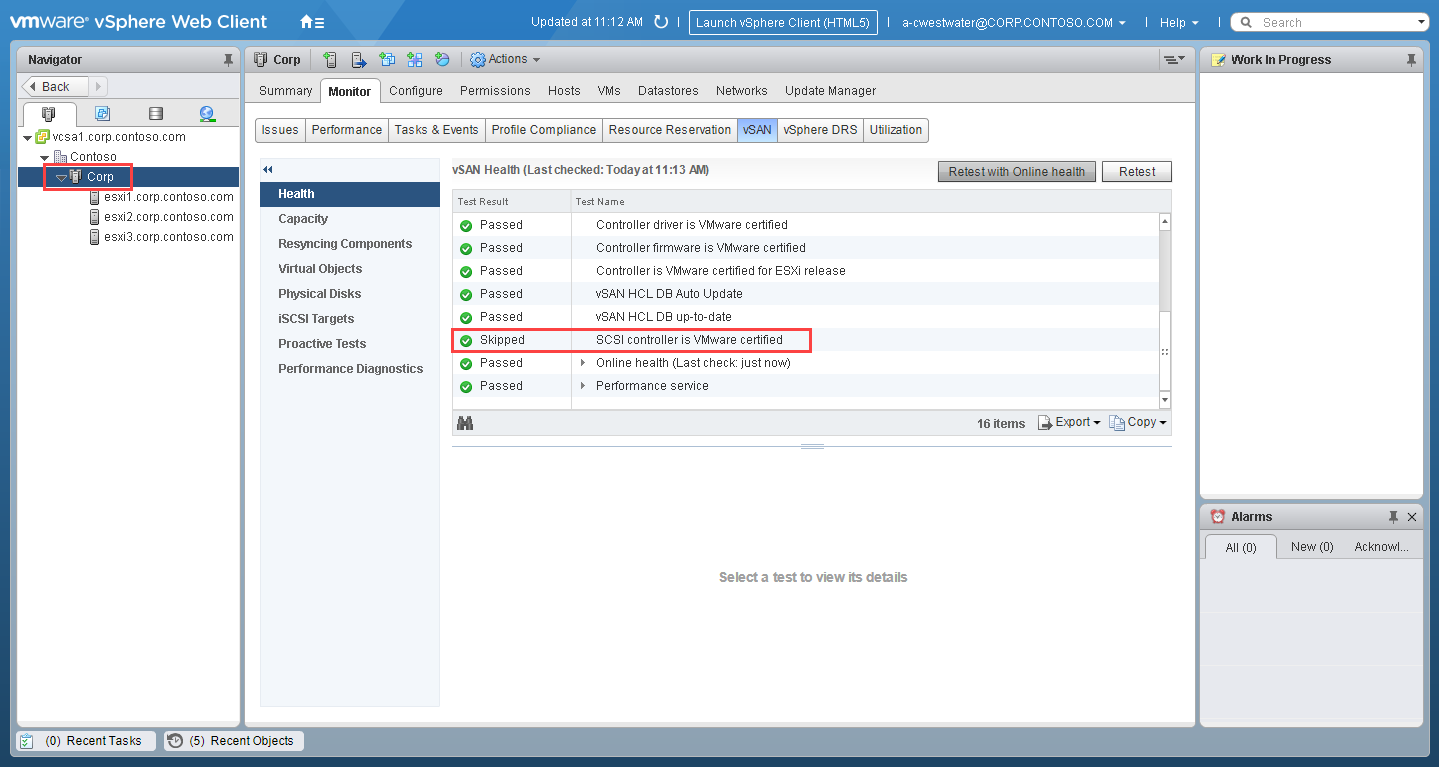

vSAN Health Skipped

Wrap Up

Now that check is skipped the warning is gone from my Cluster and my OCD is happy.

The RVC seems to be a useful tool for checking and manipulating vSphere and vSAN so I am going to spend some more time investigating what can be done with it.

I hope this post helps others that run a nested vSAN lab.

Categories:

Updated:
