AD Authentication in Ubuntu

3 minute read

Introduction

I am starting to get back into Ansible and wanted to setup AD Authentication from the control node (Ubuntu 20.04) to my Windows 2019 domain. The Ubuntu VM has a DHCP IP from the Domain Controller and DNS resolution is working correctly:

cwestwater@ubuntu:~$ nslookup dc01
Server:		127.0.0.53
Address:	127.0.0.53#53

Non-authoritative answer:
Name:	dc01.corp.contoso.com
Address: 10.10.1.10

I read a couple of articles on how to do this but could not get authentication to work. I finally saw my error and so thought I’d document it here.

Install Kerberos package in Ubuntu

The first thing to do it install the package to enable Kerberos authentication:

cwestwater@ubuntu:~$ sudo apt-get install krb5-user

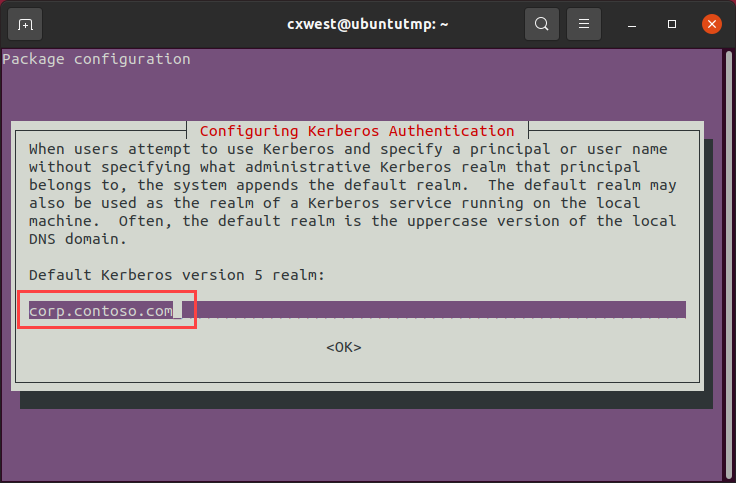

This installs the package then prompts for you to enter your default Kerberos realm aka the domain name. In my lab this is corp.contoso.com:

krb5-user Setup

I then tested by trying to authenticate using the kinit command and passing my admin credential:

cwestwater@ubuntu:~$ kinit a-cwestwater
Password for a-cwestwater@corp.contoso.com:
kinit: KDC reply did not match expectations while getting initial credentials

So we can see it it picking up the domain in the username ok, but not throwing an error.

Kerberos Configuration

Next I found there was a configuration file for setup of Kerberos called krb5.conf. I did some research using links such as to see if I was missing something:

Opening this file I could see under [libdefaults] the domain name I entered above:

[libdefaults]
        default_realm = corp.contoso.com

Next I started looking at the options for the [libdefaults] section and settled on this:

[libdefaults]
        default_realm = corp.contoso.com
        dns_lookup_realm = false
        ticket_lifetime = 24h
        renew_lifetime = 7d
        forwardable = true
        rdns = false

What do these options mean?

  • default_realm is what was entered in the first step when the Kerberos package was install. This is the Active Directory domain
  • dns_lookup_realm set to false specifies that DNS TXT records should not be used to determine the domain of a host
  • ticket_lifetime is time a ticket (aka authentication) is valid for
  • renew_lifetime is the renewable lifetime for the authentication ticket
  • forwardable let you forward the authentication ticket
  • rdns prevent the use of reverse DNS resolution when translating hostnames into service principal names (more secure)

I’m not a Kerberos expert but the options seem reasonable so I used them. More details for each option are in the links above if you want to delve deeper. I tried again to get a kerberos ticket:

cwestwater@ubuntu:~$ kinit a-cwestwater
Password for a-cwestwater@corp.contoso.com:
kinit: KDC reply did not match expectations while getting initial credentials

Still the same issue.

The Solution

So after extensive Googling and changes to the configuration file I stumbled upon this post: Linux: Kerberos authentification against Windows Active Directory. by Michael Albert. I noticed my fatal mistake:

If the “KDC reply did not match expectations while getting initial credentials” error occurs, check your /etc/krb5.conf. Ensure that all Realm names are in upper case letters.

I changed my config file [libdefaults] section to this:

[libdefaults]
        default_realm = CORP.CONTOSO.COM
        dns_lookup_realm = false
        ticket_lifetime = 24h
        renew_lifetime = 7d
        forwardable = true
        rdns = false

and then tried authenticating again:

cwestwater@ubuntu:~$ kinit a-cwestwater
Password for a-cwestwater@corp.contoso.com:

No error message but nothing was returned. Was I successful or not? There is a command klist that can show your current tokens:

cwestwater@ubuntu:~$ klist
Ticket cache: FILE:/tmp/krb5cc_1000
Default principal: a-cwestwater@CORP.CONTOSO.COM

Valid starting     Expires            Service principal
18/05/21 20:27:31  19/05/21 06:27:31  krbtgt/CORP.CONTOSO.COM@CORP.CONTOSO.COM
	renew until 25/05/21 20:27:28

That looked good to me. However I wanted to test to make sure authentication was working as I hoped. On Michaels post he shows how to connect to a Windows server once you have a Kerberos ticket using a package called rpcclient:

cwestwater@ubuntu:~$ rpcclient dc01.corp.contoso.com -k
rpcclient $> srvinfo
	DC01.CORP.CONTOWk Sv PDC Tim NT
	platform_id     :	500
	os version      :	10.0
	server type     :	0x80102b
rpcclient $> getusername
Account Name: a-cwestwater, Authority Name: corp
rpcclient $> getusername
Account Name: a-cwestwater, Authority Name: corp
rpcclient $>

First we connect to the my Domain Controller dc01.corp.contoso.com using rpcclient. The -k option makes it use Kerberos for authentication. You can see we are connected correctly. Then at the rpcclient prompt I ran a getusername as a further check. It all looks good now.

Wrap Up

In my defence I’m a Windows guy and so not worried that much about case sensitivity. I do however when using Linux just make everything lower case to stay consistent. That was my downfall this time!

I hope this helps someone else experiencing the same problem.
