Windows 10 Fall Creators Update and Synology NAS

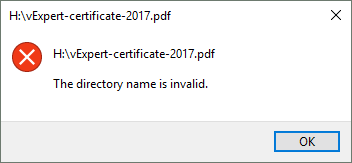

Windows 10 Fall Creators Update (version 1709) was released this week and I updated my main PC at home. Very quickly I noticed trying to open any file on my Synology, no matter what type, was failing with the error:

Synology Error

Copying the file to a local disk had no issues. I knew it must be something to do with the PC as my work laptop using the previous Windows 10 version had no issues.

Then I remembered reading Microsoft announced that the Fall Creators Update would disable SMB1 by default. This is a great decision by Microsoft in my opinion, but it was causing me an issue. Note too in the Microsoft article it does not list the error I was getting.

You can check if SMB1 is enabled or not using PowerShell:

PS C:\WINDOWS\system32> Get-WindowsOptionalFeature -Online -FeatureName SMB1Protocol | select State

   State
   -----
Disabled

You can see SMB1 is disabled.

So there are two choices - enable SMB1 or get the Synology to use a newer version of SMB.

Enable SMB1 in Windows 10

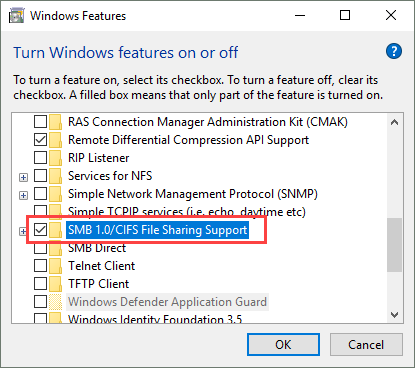

This is not recommended, but it will fix this particular issue. To enable SMB1 you can use the Control Panel and enable the SMB1 Feature:

Enable SMB1

but PowerShell is the way I try to do most things:

PS C:\WINDOWS\system32> Enable-WindowsOptionalFeature -FeatureName SMB1Protocol -Online


Path          :
Online        : True
RestartNeeded : True

PS C:\WINDOWS\system32> Restart-Computer

You can now access the files on the Synology.

‘Disable’ SMB1 on Synology

A much better solution is to disable SMB1 on the Synology. Technically you can’t just select a check box to disable it. You change an advanced setting in SMB to say the Minimum SMB protocol is SMB2. This means SMB1 is not used on the Synology.

To change this setting in DSM browse to Control Panel...File Services...SMB/AFP/NFS and click on Advanced:

Synology SMB2

Then change Maximum SMB Protocol: to SMB3 and Minimum SMB Protocol: to SMB2:

Synology SMB2

While you change the options you will see in SMB Range: the supported SMB protocols change.

Apply the changes and you should be now using SMB2 at least with your Windows 10 machine, but it should automatically use SMB3.

You can check the SMB version being used through PowerShell:

PS C:\WINDOWS\system32> Get-SmbConnection

ServerName ShareName UserName                   Credential                 Dialect NumOpens
---------- --------- --------                   ----------                 ------- --------
NAS-01     home      WIN10\cwestwater           WIN10\cwestwater           3.1.1   1

Note the Dialect is 3.1.1 - SMB3.

If you had chosen SMB2 as both the Maximum and Minimum SMB Protocol on the Synology you would see:

PS C:\WINDOWS\system32> Get-SmbConnection

ServerName ShareName UserName                   Credential                 Dialect NumOpens
---------- --------- --------                   ----------                 ------- --------
NAS-01     home      WIN10\cwestwater           WIN10\cwestwater           2.0.2   1

Wrap up

Synology devices are very popular and as Windows 10 Fall Creators Update starts hitting machines I hope someone finds this useful. I highly recommend you change the SMB version on the Synology and do not enable SMB1 on Windows 10.
